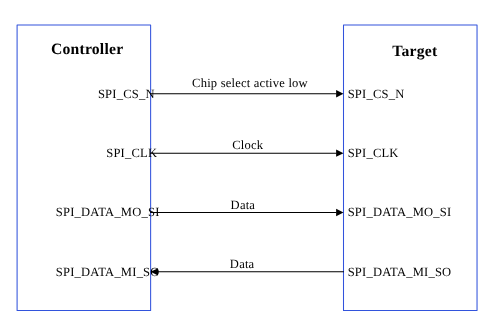

SPI

spi@a98000 {
compatible = "qcom,geni-spi";
reg = <0 0x00a98000 0 0x4000>;
clocks = <&gcc GCC_QUPV3_WRAP1_S6_CLK>;
clock-names = "se";
pinctrl-names = "default";
pinctrl-0 = <&qup_spi14_data_clk>, <&qup_spi14_cs>;
interrupts = <GIC_SPI 368 IRQ_TYPE_LEVEL_HIGH>;
#address-cells = <1>;
#size-cells = <0>;
power-domains = <&rpmhpd SC7280_CX>;
operating-points-v2 = <&qup_opp_table>;
interconnects = <&clk_virt MASTER_QUP_CORE_1 0 &clk_virt SLAVE_QUP_CORE_1 0>,
		<&gem_noc MASTER_APPSS_PROC 0 &cnoc2 SLAVE_QUP_1 0>;
interconnect-names = "qup-core", "qup-config";
		dmas = <&gpi_dma1 0 6 QCOM_GPI_SPI>,
	       <&gpi_dma1 1 6 QCOM_GPI_SPI>;
dma-names = "tx", "rx";
status = "disabled";
};

qup_spi14_data_clk: qup-spi14-data-clk-state {
				pins = "gpio56", "gpio57", "gpio58";
				function = "qup16";
			};

			qup_spi14_cs: qup-spi14-cs-state {
				pins = "gpio59";
				function = "qup16";
			};

			qup_spi14_cs_gpio: qup-spi14-cs-gpio-state {
				pins = "gpio59";
				function = "gpio";
			};

			qup_spi15_data_clk: qup-spi15-data-clk-state {
				pins = "gpio60", "gpio61", "gpio62";
				function = "qup17";
			};

{ QUPV3_0_SE3, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // CAN SPI
{ QUPV3_1_SE3, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_FIFO, AC_HLOS,            FALSE, TRUE,  TRUE }, // LS1 SPI
{ QUPV3_1_SE4, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_GSI,  AC_TZ,              FALSE, TRUE,  TRUE }, // SPI -NFC ESE
{ QUPV3_1_SE6, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_GSI,  AC_HLOS,            FALSE, TRUE,  FALSE}, // FP
{ QUPV3_SSC_SE2, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_GSI, AC_ADSP_Q6_ELF,  FALSE,      FALSE, FALSE }, // IMU_SPI

       /* QUPV3_0  wrapper  instance */
    TOP_QUP_0{
        compatible = "qcom,qup-controller";
        qup_id                      = /bits/  8 <(QUP_0)>;
        core_base_addr              = <QUPV3_0_CORE_BASE_ADDRESS>;
        common_base_addr            = <(QUPV3_0_CORE_COMMON_BASE_ADDRESS)>;
        se_wrapper_base_addr        = <(QUPV3_0_CORE_SE_BASE_ADDRESS)>;
        core_frequency              = <100000000>;
        qup_flags                   = <(QUP_FLAGS_UNUSED)>;
        num_se                      = /bits/ 8 <8>;
        status                      = "okay";

/*TOP_QUP_0_SE_0  Instance */
        TOP_QUP_0_SE_0{
          status                      = "disabled";  (updated to okay if you need the instance to be enabled)
            core_offset                 = <0x00000000>;
            se_flags                    = <(USES_DDR_BUFFER | USES_INTERNAL_DDR_MEM | ENABLE_FATAL_ON_TIMEOUT | POLLED_MODE)>;
            se_index                    = /bits/  8 <0>;
            FIFO_MODE                   = /bits/  8 <1>;
            protocol_supported          = <(I2C_SUPPORTED | UART_SUPPORTED | SPI_SUPPORTED)>;
            interface_supported         = <CORE_IRQ>;
           * gpi_index                   = /bits/ 8 <0xFF>;
            core_irq                    = /bits/ 16 <0>;
            pdc_irq                     = /bits/ 16 <0>;
            gpio_int_num                = /bits/ 16 <0>;
            i2c_hub                     = /bits/ 8  <0>;
            i2c_mm                      = /bits/ 16 <0>;
            SE_EXCLUSIVE                = /bits/  8 <1>;
            pinctrl-names               = "i2c-default", "i2c-sleep","spi-default", "spi-sleep","uart-default", "uart-sleep";
            pinctrl-0                   = <&top_qup0_se0_i2c_active>;
            pinctrl-1                   = <&top_qup0_se0_i2c_sleep>;
            pinctrl-2                   = <&top_qup0_se0_spi_active>;
            pinctrl-3                   = <&top_qup0_se0_spi_sleep>;
            pinctrl-4                   = <&top_qup0_se0_uart_active>;
            pinctrl-5                   = <&top_qup0_se0_uart_sleep>;

            se_clock                    = "gcc_qupv3_wrap0_s0_clk";
        };

#define top_qup0_se1_i2c_active_cfg  GPIO_CFG(GPIO_INPUT,GPIO_PULL_UP,GPIO_DRIVE_STRENGTH(200),GPIO_STRONG_PULL)

  /*TOP_QUP0_se1_pinctrl*/
    top_qup0_se1_i2c_active: top_qup0_se1_i2c_active{
    --    config = <&qup0_l0_1 top_qup_i2c_active_cfg>,
                 <&qup0_l1_1 top_qup_i2c_active_cfg>;
   ++  config = <&qup0_l0_1 top_qup0_se1_i2c_active_cfg>,
                 <&qup0_l1_1 top_qup0_se1_i2c_active_cfg>;
    };

se_cfg se4_cfg = { 0x90000, SE_PROTOCOL_SPI,   	GSI,     TRUE, TRUE };

{      .instance_id          =  5 ,         //Instance ID
        .qup              =  QUP_SSC,    //QUP Type
        .se_index         =  4,          //SE ID
        .se_data          =  NULL,       //devcfg_map
        .protocol_io_cfg  =  {
                                TLMM_MAP(TLMM_GPIO_KEEPER ,TLMM_GPIO_2MA,TLMM_GPIO_KEEPER ),              //SLEEP CFG
                                TLMM_MAP(TLMM_GPIO_NO_PULL,TLMM_GPIO_6MA,TLMM_GPIO_KEEPER ),              //SPI CFG
                                TLMM_MAP(TLMM_GPIO_NO_PULL,TLMM_GPIO_2MA,TLMM_GPIO_NO_PULL),              //UART CFG
                                TLMM_MAP(TLMM_GPIO_PULL_UP,TLMM_GPIO_2MA,TLMM_GPIO_NO_PULL),              //I2C CFG
                                TLMM_MAP(TLMM_GPIO_PULL_UP,TLMM_GPIO_2MA,TLMM_GPIO_KEEPER )               //I3C CFG
                             },
        .se_exclusive     =  TRUE,
}

TLMM_MAP (active state pull type, drive strength, sleep state pull type)

#define TZ_USE_SPI_13 //NFC-ese

#define TZ_USE_SPI_14 //Touch-SPI

#define TZ_USE_SPI_15 //FP sensor

spi_plat_device_config_user spi_device_user_config_0 =

    {2,2,2,2,-1,-1,-1},    //.drive_strength index: 0 - MISO, 1 - MOSI, 2 - SCLK, 3 - CS_0, 4- CS_1, 5- CS_2, 6- CS_3
                                	                 value: 0 - 2MA, 1 - 4MA, 2 - 6MA
    {1,1,0,1,-1,-1,-1},    //.pull index: 0 - MISO, 1 - MOSI, 2 - SCLK, 3 - CS_0, 4- CS_1, 5- CS_2, 6- CS_3
                                value: 0 - NO_PULL, 1 = PULL_DOWN, 2 = KEEPER, 3 = PULL_UP
    0xFF,                 //.gpii_idx
    0,                   //.mode_select  not supported for TZ
    0,                   //.flags not supported for TZ
};

const QUPv3_se_security_permissions_type qupv3_perms_iot_rb3[] =
{
  /*   PeriphID,         ProtocolID,               Mode,  NsOwner,       bAllowFifo, bLoad, bModExcl  */
  { QUPV3_0_SE0, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // LT9611 and QPS615 I2C
  { QUPV3_0_SE1, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // APPS I2C - PCIE/ USB Type C
  { QUPV3_0_SE2, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // SMB / LS1 I2C
  { QUPV3_0_SE3, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // CAN SPI
  { QUPV3_0_SE4, QUPV3_PROTOCOL_UART_4W, QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // LS1 UART
  { QUPV3_0_SE5, QUPV3_PROTOCOL_UART_2W, QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  FALSE, FALSE }, // Debug UART
  { QUPV3_0_SE6, QUPV3_PROTOCOL_UART_2W, QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // WLAN UART
  { QUPV3_0_SE7, QUPV3_PROTOCOL_UART_4W, QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // Hastings BT
  { QUPV3_1_SE0, QUPV3_PROTOCOL_SPMI,    QUPV3_MODE_FIFO, AC_ADSP_Q6_ELF,     TRUE,  TRUE,  FALSE }, // QuP SPMI
  { QUPV3_1_SE1, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // NFC I2C
  { QUPV3_1_SE2, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_FIFO, AC_HLOS,            TRUE,  TRUE,  FALSE }, // HDMI OUT for VIDEOIOBoard
  { QUPV3_1_SE3, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_FIFO, AC_HLOS,            FALSE, TRUE,  TRUE }, // LS1 SPI
  { QUPV3_1_SE4, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_GSI,  AC_TZ,              FALSE, TRUE,  TRUE }, // SPI -NFC ESE
  { QUPV3_1_SE5, QUPV3_PROTOCOL_I2C,     QUPV3_MODE_GSI,  AC_HLOS,            FALSE, TRUE,  FALSE}, // Legacy Touch
  { QUPV3_1_SE6, QUPV3_PROTOCOL_SPI,     QUPV3_MODE_GSI,  AC_HLOS,            FALSE, TRUE,  FALSE}, // FP
  /*QUPV3_1_SE7*/
};

diff --git a/arch/arm64/boot/dts/qcom/<chipset>.dtsi b/arch/arm64/boot/dts/qcom/<chipset>.dtsi
index 82dfa3e..344e99a 100644
--- a/arch/arm64/boot/dts/qcom/<chipset>.dtsi
+++ b/arch/arm64/boot/dts/qcom/<chipset>.dtsi
@@ -6760,3 +6760,12 @@
<GIC_PPI 10 IRQ_TYPE_LEVEL_LOW>;
 };
 };
+
+&spi14 {
+        status = "ok";
+        spidev@0 {
+                compatible = "spidev";
+                spi-max-frequency = <50000000>;
+                reg = <0>;
+        };
+};

diff --git a/drivers/spi/spidev.c b/drivers/spi/spidev.c
index d13dc15..36d7914 100644
--- a/drivers/spi/spidev.c
+++ b/drivers/spi/spidev.c
@@ -84,7 +84,7 @@
static LIST_HEAD(device_list);
static DEFINE_MUTEX(device_list_lock);

-static unsigned bufsiz = 4096;
+static unsigned bufsiz = 35000;
module_param(bufsiz, uint, S_IRUGO);
MODULE_PARM_DESC(bufsiz, "data bytes in biggest supported SPI message");

@@ -742,6 +742,7 @@
 	{ .compatible = "semtech,sx1301", .data = &spidev_of_check },
 	{ .compatible = "silabs,em3581", .data = &spidev_of_check },
 	{ .compatible = "silabs,si3210", .data = &spidev_of_check },
+	{ .compatible = "spidev"},
{},
 };
 MODULE_DEVICE_TABLE(of, spidev_dt_ids);

./spidev_test -help

-D --device   device to use (default /dev/spidev1.1)
-s --speed    max speed (Hz)
-d --delay    delay (usec)
-b --bpw      bits per word
-i --input    input data from a file (e.g. "test.bin")
-o --output   output data to a file (e.g. "results.bin")
-l --loop     loopback
-H --cpha     clock phase
-O --cpol     clock polarity
-L --lsb      least significant bit first
-C --cs-high  chip select active high
-3 --3wire    SI/SO signals shared
-v --verbose  Verbose (show tx buffer)
-p  Send data (e.g. "1234\xde\xad")
-N --no-cs    no chip select
  -R --ready    slave pulls low to pause
  -2 --dual     dual transfer
  -4 --quad     quad transfer
  -8 --octal    octal transfer
  -S --size     transfer size
  -I --iter     iterations

mount -t debugfs none /sys/kernel/debug
echo -n "file spi-geni-qcom.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file qcom-geni-se.c  +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file spidev.c +p" > /sys/kernel/debug/dynamic_debug/control
echo -n "file gpi.c +p" > /sys/kernel/debug/dynamic_debug/control
