RTSS test commands - Qualcomm Dragonwing Documentation

Use the RTSS test commands to test the drivers. By default, the RTSS software supports the CLI test commands through the UART terminal. Run the test commands to generate the logs. Caution Before executing any RTSS CPU core 3 test commands, enable RTSS CPU core 3. For enablement instructions, see RTSS CPU3 enablement in QCS9075M Hardware Design Guide.

Prerequisites

Set up debug UART.
Go to UART terminal.
To enable logging on to UART terminal, do the following:
1. Select Enter in the UART Shell to access sail_proc@home$. The following sample output shows the logs that confirm the access to sail_proc@home$.
  c0[ 34.609865s] Running in APPL_SAIL_Shell_start 0 c0[ 34.609912s]CPU 0 -: c0[ 34.609995s]Use help or exit command.... c0[ 34.610084s]sail_proc@home$
2. Run setlog <Level > <Privilege> on the UART terminal to set the allowed logging based on level and privilege. Parameters:
  - <Level>: info, err, warn, or dbg
  - <Privilege>: el1 or el2
  For example,
  setlog info el1
  The following sample output shows the logs for loglevel set to LOG_INFO:
  c0[ 208.449904s]CPU 0 -: setlog info el1 c0[ 208.450087s]>>>>>> EL1 UART loglevel set to LOG_INFO Success <<<<<<< c0[ 208.450153s]Use help or exit command…. c0[ 208.450190s]sail_proc@home$

Procedure

Run the following commands and verify the logs to validate the successful execution of commands:

help
gpio
i2cel1
spi
gpttmr_test
ospinor_el1
can

help

Run help on the UART terminal to know about the list of supported commands and their usage. For example,

help

The following sample logs show the usage references and command references:

c0[  1954.278799s]use help or exit command….
c0[  1954.278837s]sail_proc@home$
c0[  1955.755765s]=====    SAIL Command Usage   =====
c0[  1955.755802s]1)  getsailversion
usage -: getsailversion ( No param for this cmd)
c0[  1955.755954s]2)  i2cel1
usage -: i2cel1
c0[  1955.756032s]3)  spi
usage -: spi
c0[  1955.756075s]4)  gpt
usage -: gpt start < value >
gpt stop
gpt stats
c0[  1955.756161s]5)  setlog
usage -: setlog info el1
usage -: setlog err el1
usage -: setlog warn el1
usage -: setlog dbg el1
usage -: setlog info el2
usage -: setlog err el2
usage -: setlog warn el2
usage -: setlog dbg el2
c0[  1955.756272s]use help or exit command….
c0[  1955.756350s]sail_proc@home$

gpio

Run the following gpio commands on the UART terminal to do the GPIO functional test.

Note
GPIO 11 is used as the reference GPIO number in all examples below. Replace <gpio_num> with the actual GPIO number available on your hardware. The canMailboxTask: MD S1 NOT READY!!! messages on core c1 are CAN mailbox background messages and don’t affect GPIO test results.

gpio Run the generic GPIO test suite that covers all basic test cases (TC_GPIO_000 through TC_GPIO_004). For example,

gpio

Parameters: None Sample logs:

c0[    73.676259s]Invalid test command, running generic test cases
c0[    73.676304s] GPIO test started
c0[    73.676365s][TC_GPIO_000] Passed
c0[    73.676424s][TC_GPIO_001] Passed
c0[    73.676483s][TC_GPIO_002] Passed
c0[    73.676556s][TC_GPIO_003] Passed
c0[    73.676592s][TC_GPIO_004] Passed
c0[    73.676673s][GPIO tests Passed]

gpio input <gpio_num> Configure a GPIO pin as input using the RAW driver interface. Parameter: <gpio_num>: GPIO pin number to configure as input. For example,
gpio input 11
Sample logs:
c0[ 129.470335s]Configuring gpio 11 as input with RAW
gpio output <gpio_num> Configure a GPIO pin as output using the RAW driver interface. Parameter: <gpio_num>: GPIO pin number to configure as input. For example,
gpio output 11
Sample logs:
c0[ 142.044699s]Configuring gpio 11 as output with RAW
gpio high <gpio_num> Drive a GPIO pin to logic high using the RAW driver interface. Parameter: <gpio_num>: GPIO pin number to drive high. For example,
gpio high 11
Sample logs: c0[ 156.699917s]Setting gpio 11 as High with RAW
gpio low <gpio_num> Drive a GPIO pin to logic low using the RAW driver interface. Parameter: <gpio_num>: GPIO pin number to drive low. For example,
gpio low 11
Sample logs: c0[ 168.908299s]Setting gpio 11 as Low with RAW
gpio read <gpio_num> Read and report the current logic state of a GPIO pin. Parameter: <gpio_num>: GPIO pin number to read. For example,
gpio read 11
Sample logs:
c0[ 129.470335s]Configuring gpio 11 as input with RAW
gpio intr_low <gpio_num>
Note
The gpio intr_low, gpio intr_high, gpio intr_rising, gpio intr_falling, and gpio intr_dual commands register summary interrupts for the specified GPIO. Before configuring the same GPIO with a different interrupt trigger type, deregister the existing summary interrupt by running gpio summary_intr_dereg <gpio_num>
Enable a low-level triggered interrupt on a GPIO pin. Parameter: <gpio_num>: GPIO pin number on which to enable low-level interrupt. For example,
gpio intr_low 11
Sample logs: c0[ 192.765044s]Enabled Low Level Interrupt on gpio 11 with RAW
gpio intr_high <gpio_num> Enable a high-level triggered interrupt on a GPIO pin. Parameter: <gpio_num>: GPIO pin number on which to enable high-level interrupt. For example,
gpio intr_high 11
Sample logs: c0[ 502.252913s]Enabled High Level Interrupt on gpio 11 with RAW
gpio intr_rising <gpio_num> Enable a rising-edge triggered interrupt on a GPIO pin. Parameter: <gpio_num>: GPIO pin number on which to enable rising-edge interrupt. For example,
gpio intr_rising 11
Sample logs:
c0[ 525.837697s]Enabled Low Level Interrupt on gpio 11 with RAW
NoteThe log reports Low Level Interrupt instead of Rising Edge Interrupt. Verify whether this is the expected firmware behaviour or flag it as a log string defect in the driver.
gpio intr_falling <gpio_num> Enable a falling-edge triggered interrupt on a GPIO pin. Parameter: <gpio_num>: GPIO pin number on which to enable falling-edge interrupt. For example,
gpio intr_falling 11
Sample logs:
c0[ 3524.072550s]Enabled Falling Edge Interrupt on gpio 11 with RAW
gpio intr_dual <gpio_num> Enable a dual-edge (both rising and falling) triggered interrupt on a GPIO pin. Parameter: <gpio_num>: GPIO pin number on which to enable dual-edge interrupt. For example,
gpio intr_dual 11
Sample logs:
c0[ 3550.232162s]Enabled Dual Edge Interrupt on gpio 11 with RAW
gpio intr_trigger <gpio_num> Wait and validate an interrupt trigger on a GPIO pin. The command blocks until the interrupt fires and the ISR executes. Parameter: <gpio_num>: GPIO pin number on which to trigger and validate the interrupt. For example,
gpio intr_trigger 11
Sample logs:
c0[ 3583.831676s]Waiting for GPIO 11 interrupt c0[ 3583.831716s]Interrupt Trigged and ISR executed on gpio 11 with RAW
gpio direct_intr_dereg <gpio_num> Deregister a previously registered direct interrupt handler on a GPIO pin. Parameter: <gpio_num>: GPIO pin number from which to deregister direct interrupt. For example,
gpio direct_intr_dereg 11
Sample logs: c0[ 453.821464s]Direct Interrupt deregister test passed
gpio summary_intr_reg <gpio_num> Register a summary interrupt handler on a GPIO pin and validate the registration. Parameter: <gpio_num>: GPIO pin number on which to register summary interrupt. For example,
gpio summary_intr_reg 11
Sample logs:
c0[ 322.686293s]Summary Interrupt register test passed
gpio summary_intr_dereg <gpio_num> Deregister a previously registered summary interrupt handler on a GPIO pin. Parameter: <gpio_num>: GPIO pin number from which to deregister summary interrupt. For example,
gpio summary_intr_dereg 11
Sample logs:
c0[ 222.156534s]Summary Interrupt deregister test passed

i2cel1

Run i2cel1 on the UART terminal to do the I2C functional test.

NoteThe i2cel1 test command is for i2c0 only. For i2c1, you must update the test application.

Note

PMIC is connected to I2C.

PMIC is connected to I2C. Parameters: None For example,

i2cel1

The following sample logs show the successful validation of the i2cel1 command:

c0[    57.020413s]>>>>>>  I2C El1 Test Cases Started   <<<<<<<
c0[    57.020481s][TC_I2C_EL1_01] I2C El1 Initialization test
c0[    57.021221s][TC_I2C_EL1_01] I2C0 Init Success.
c0[    57.021967s][TC_I2C_EL1_01] I2C1 Init Success.
c0[    57.022033s][TC_I2C_EL1_01] I2C El1 DMA Initialization test Passed
c0[    57.022095s][TC_I2C_EL1_02] I2C El1 Get Secondary Address test
c0[    57.022208s][TC_I2C_EL1_02] xI2c_EL1_GetSecondaryAddress Success for PAGE_ID_0 Secondary address= 0x28.
::::::::
c0[    57.035789s][TC_I2C_EL1_08] I2C El1 DeInit-ReInit-DeInit test
c0[    57.039229s][TC_I2C_EL1_08] I2C El1 DeInit-ReInit-DeInit test Passed
c0[    57.039291s]I2C EL1 Unit test validation Passed!!!

NoteTo get all the I2C test result logs, enable the INFO log level by running the following command:

setlog info el1

spi

Run spi on the UART terminal to do the SPI functional test.

NoteThe spi test command is for spi0 only. For multiple SPI channels, you must configure the DTS file.

Parameters: None For example,

spi

The following sample logs show the successful validation of the spi command:

c1[     8.411406s][TC_SPI_001]: Test Synchronous transmission in Loopback mode - Passed
c1[     8.411743s][TC_SPI_005]: Test - Write/Read TCAN0 Scratch register - Failed
c1[     8.411796s][TC_SPI_009]: Test Spi_GetSequenceResult API for a sequence ID in sync mode - Passed
c1[     8.411824s][TC_SPI_010]: Test Spi_GetStatus API for Spi Handler driver - Passed

NoteTC_SPI_002/TC_SPI_003/TC_SPI_005 are expected to fail due to no device ID and scratch register. These test cases will be removed in a future release.

NoteTo enable the SPI loopback, add the following code changes in Spi_PBcfg.c:

<Note>
  --- a/SAIL.SI.1.2/sail_proc/BSP/spi/src/Spi_PBcfg.c
 +++ b/SAIL.SI.1.2/sail_proc/BSP/spi/src/Spi_PBcfg.c
 @@ -212,7 +212,7 @@ SPI_RO static const Spi_JobConfigType Spi_JobConfig[] =
 .SpiJobId                               = 0,
 .SpiChannelAssignment   = SpiJob_0_ChannelList,
 .SpiChannelsPerJob      = 1,

  - .SpiInternalLoopBack    = FALSE,

  - .SpiInternalLoopBack    = TRUE,  /\* Change from FALSE to TRUE for loopback test \*/
 .SpiJobEndNotification  = NULL_PTR,
 .SpiJobPriority                 = 0,
 .SpiHwUnit                      = CSIB1,
</Note>

NoteDue to a known task-priority issue, the SPI test case may occasionally fail to execute. If the SPI test case doesn’t run, apply the following changes and re-test. This will be fixed in the future release.

--- a/SAIL.SI.1.2/sail_proc/BSP/sailfreertos/src/freertos_init.c
+++ b/SAIL.SI.1.2/sail_proc/BSP/sailfreertos/src/freertos_init.c
@@ -208,7 +208,7 @@ static const FreertosTaskSchedulingTableType xTaskInitTable[] =
{
   /*** CPU0 ***/
   { CPU0, TASK_PRIOR_5, xISDTaskInit,                     NULL                                },
-    { CPU0, TASK_PRIOR_3, xSAILshellTaskInit_core0,         xAPPLShellTaskRTOSFeatureInit       },
+    { CPU0, TASK_PRIOR_5, xSAILshellTaskInit_core0,         xAPPLShellTaskRTOSFeatureInit       },
   { CPU0, TASK_PRIOR_3, xSAILConsoleUartTaskInit,         xSAILConsoleUartTaskRTOSFeatureInit },
   { CPU0, TASK_PRIOR_5, xSleepTaskInit_core0,             xSleep_Task_Resources_Init          },
   { CPU0, TASK_PRIOR_3, xSpinorEL1TaskInit,               xSpinorEl1TaskResourceInit          }, // SPINOR task needs to run at the same priority
0  @@ -232,7 +232,7 @@ static const FreertosTaskSchedulingTableType xTaskInitTable[]

gpttmr_test

Run gpttmr_test on the UART terminal to do the GPT functional test.

NoteRunning gpttmr_test across different RTSS clusters (CPU cores) can expose interrupt-handling issues that may occasionally result in a device crash. However, there is no functional issue with the GPT driver itself.

The following are the various gpttmr_test commands:

gpttmr_test ft <N> N: <0/1/2/3> specifies the core on which the test will run. The user can explicitly select the core using this parameter. If no core is specified, the test will run on Core 0 by default.
- gpttmr_test ft 3 - Runs the functional test on core 3
- gpttmr_test ft - Runs the test on core 0 (default)

For example,

gpttmr_test ft <0>

The following sample logs show the initialization of the timer test:

c0[169.001665s] vTestsGPTTimerTask: Command 0
c0[169.002315s] GPT_TMR_01 PASS
c0[169.003194s] GPT_TMR_06 PASS
::::::::::::::::::::
c0[169.014386s] GPT_TMR_13 PASS
c0[169.004610s] Gpt_Notification1_test: elapsed=0x15 rem=0x26E6 total=0x26FB diff=21
c0[169.015955s] xTestsGPTTimerTaskInit created

gpttmr_test stats The command prints the tick count delta and represents the difference between the configured target tick count and the actual tick count. It can be used to evaluate the accuracy and performance of the timer functionality. The following sample logs show the statistics for various GPT channels: For example,

gpttmr_test stats

c0[  1535.304438s]sail_proc@home$
c0[  1537.554277s]<<<<Timer 0 Stats Start>>>>
c0[  1537.554322s]High: 0
c0[  1537.554470s]Low: 0
c0[  1537.554510s]Avg is : 0
c0[  1537.554543s]iters: 0
c0[  1537.554619s]<<<<Timer 0 Stats Start>>>>
c0[  1537.557848s]<<<<Timer 11 Stats Start>>>>
c0[  1537.557900s]High: 0
c0[  1537.557933s]Low: 0
c0[  1537.558008s]Avg is : 0
c0[  1537.558041s]iters: 0
c0[  1537.558116s]<<<<Timer 11 Stats Start>>>>

ospinor_el1

Run ospinor_el1 on the UART terminal to do the SPI functional test. The command executes the positive and async test to evaluate the SPINOR memory read, write, and erase functionality. Parameters: None For example,

ospinor_el1

The following sample logs show the successful validation of the ospinor_el1 command:

c0[   436.821866s] sail_proc@home$
c0[   444.831501s] TC_SPINOR_EL1_001–015—Passed
c0[   444.956701s] TC_SPINOR_EL1_019: Erase start and end block validation—Skipped → Passed
c0[   444.990570s] TC_SPINOR_EL1_binCmdTest—Passed
c0[   445.033265s] TC_SPINOR_ASYNC_EL1_001: Erase/Write/Read Async (Higher priority)—Passed
c0[   445.034609s] xSpinorEL1TestHiTask: Terminating Task
c0[   445.077439s] TC_SPINOR_ASYNC_EL1_002: Erase/Write/Read Async (Lower priority)—Passed
c0[   445.077536s] SPINOR EL1 all test cases passed
c0[   445.078127s] xSpinorEL1TestLoTask: Terminating Task

CAN – RTSS test commands

Run the following can commands on the UART terminal to do the CAN functional test:

can init
can TX
can RX

Run CAN test commands

can init Syntax:

can -t 0 -config 1

Sample logs for can -t 0 -config 1:

c0[   736.054477s][ UART-CAN ] Queue send for core 1 pass
c1[   736.054535s]vSAILAPPLShelltask_core1: Rx Seq Q SUCCESS -:can -t 0 -config 1
c1[   736.054562s]can_mcal_test : 422 Entered string : can -t 0 -config 1
c1[   736.054594s]Invoked CanTC_Init
c1[   736.056247s] CanTest_Register ClientHandle 0xffff0004 invoked with status: 0
c1[   736.056281s] CanTest_Register client No.1 is redisted
c0[   736.056482s]sail_proc@home$
c1[   736.056554s]Can Test Callback Registration Done
c1[   736.056576s]Exiting Can Testapp with return : 0

can TX - standard ID Syntax:

can -t 3 -c x

Parameters: x = CAN controller ID: 0 to 7 Sample logs for can -t 3 -c 1

c0[    45.127555s][ UART-CAN ] Queue send for core 1 pass
c1[    45.127604s]vSAILAPPLShelltask_core1: Rx Seq Q SUCCESS -:can -t 3 -c 1
c1[    45.127632s]can_mcal_test : 422 Entered string : can -t 3 -c 1
c1[    45.127664s]Invoked CanTC_Write
c1[    45.228388s]Can_Mb_Sd_CanSrv_Tx_Callback with swPduHandle: 1, Hth: 3,  timeStamp.sec:26 timeStamp.ns:131600000
c1[    45.228433s]CanTest_TxConfirmation with swPduHandle: 1, Hth: 3,  timeStamp.sec:26 timeStamp.ns:131600000
c1[    45.278575s]xCanSrv_Write Successful on object 6 with swPduHandle 1
c1[    45.278609s]Exiting Can Testapp with return : 0

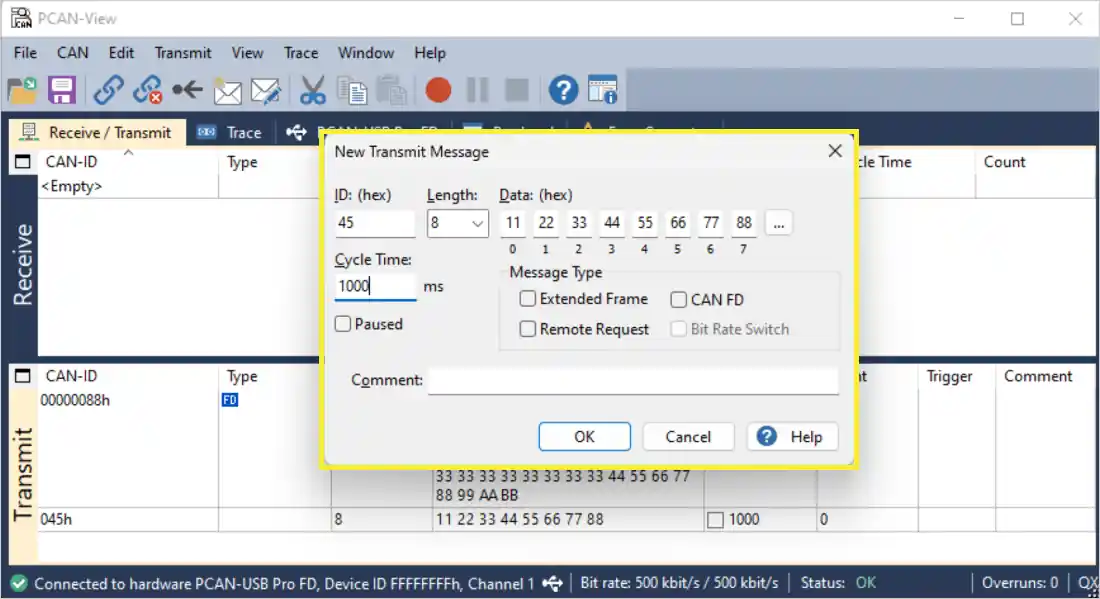

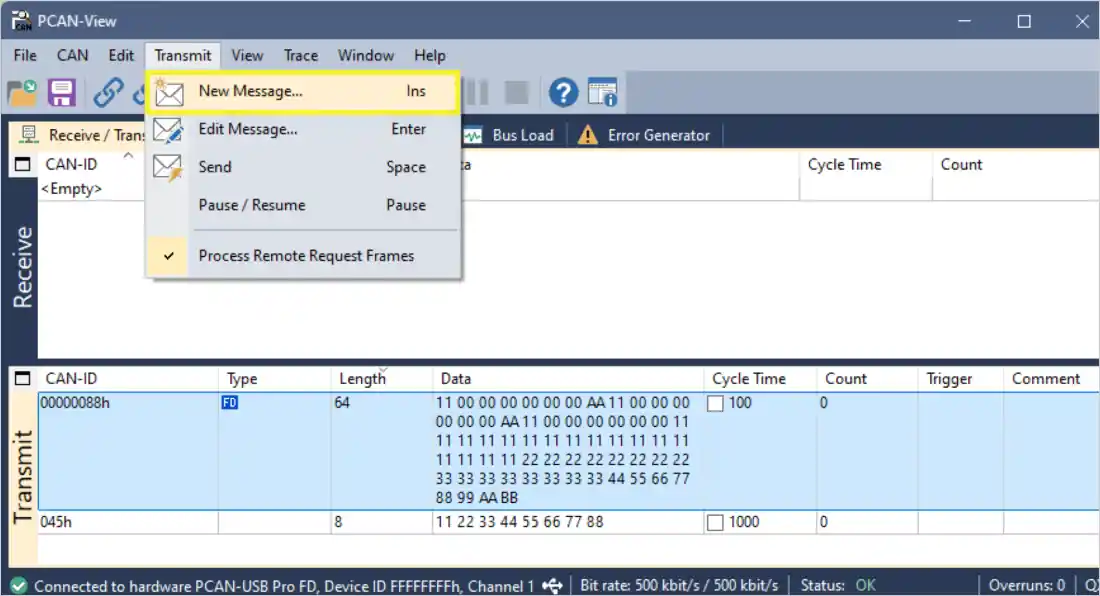

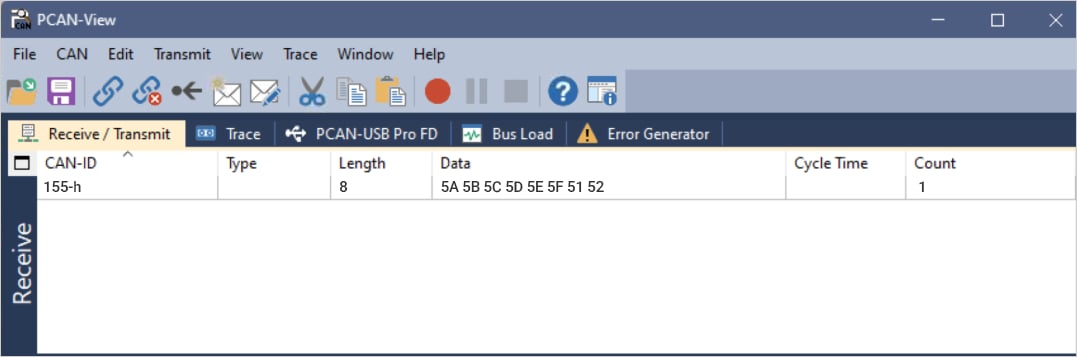

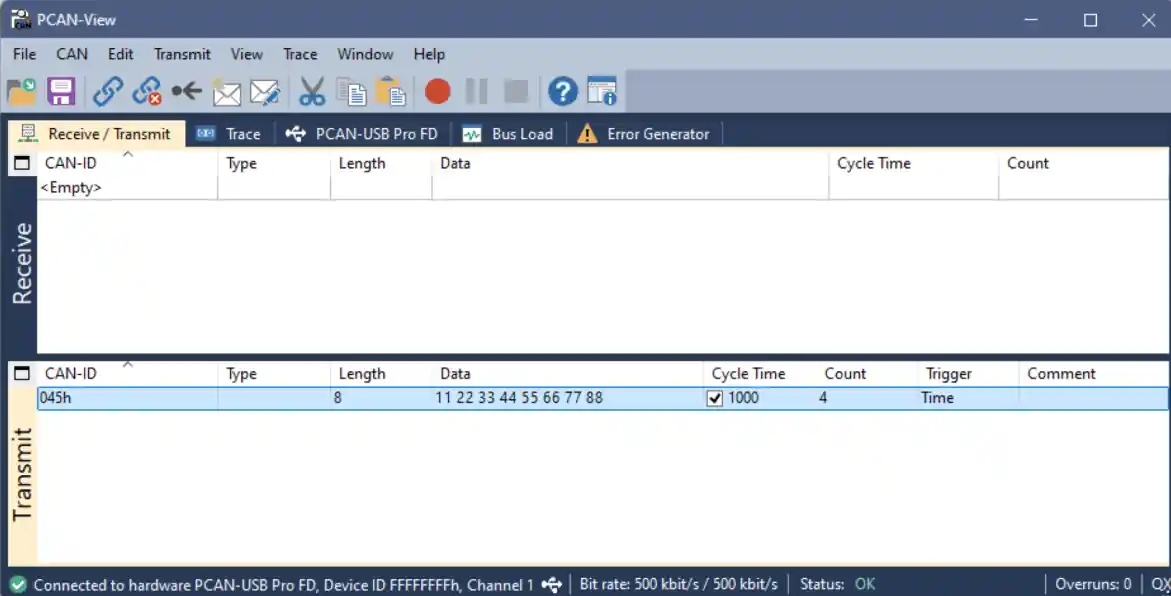

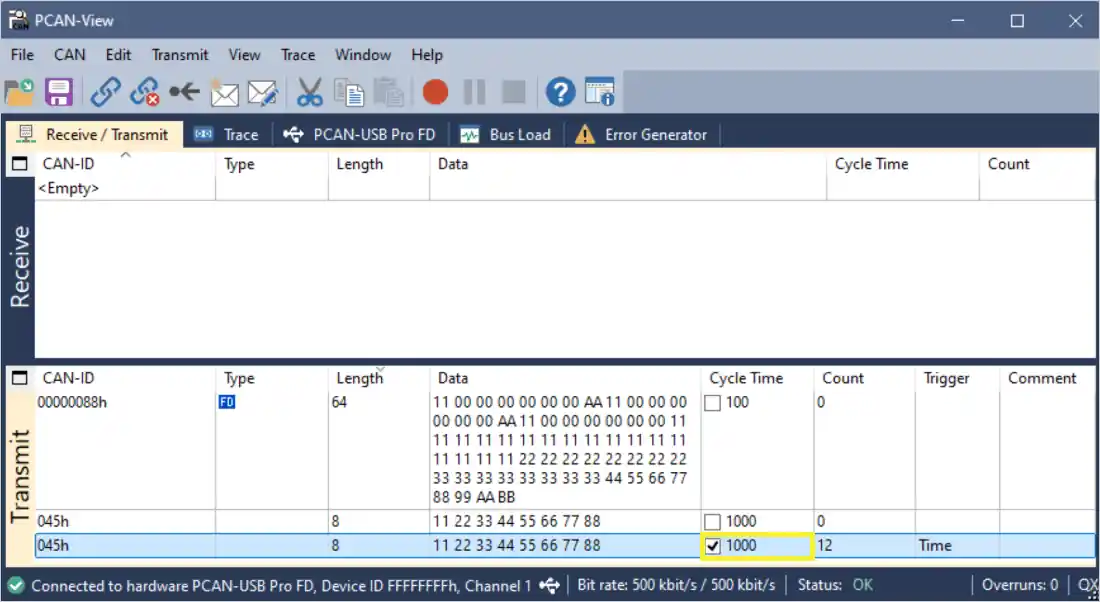

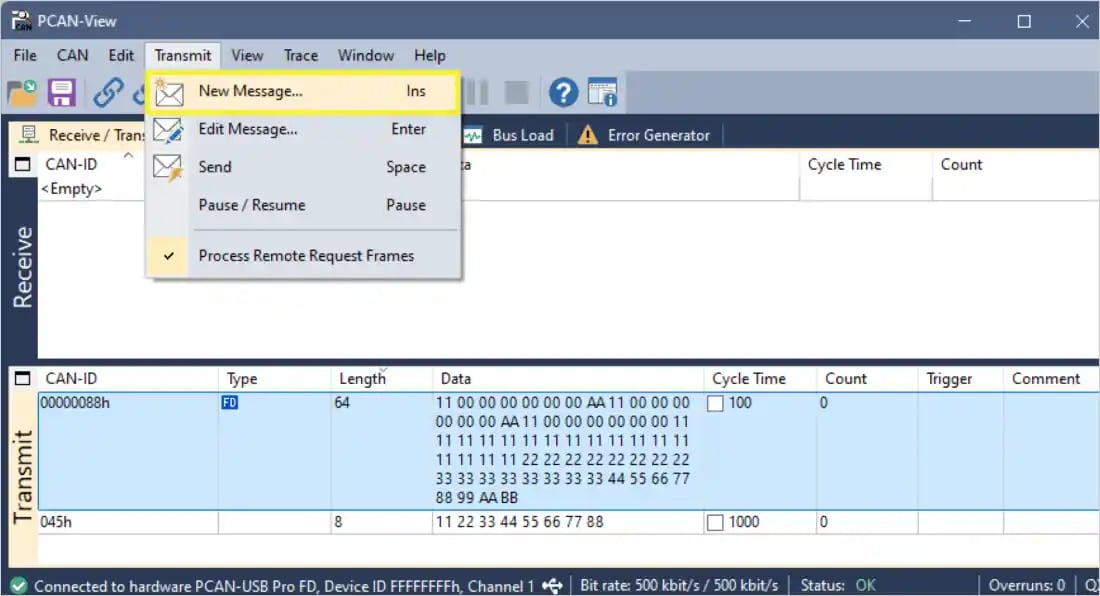

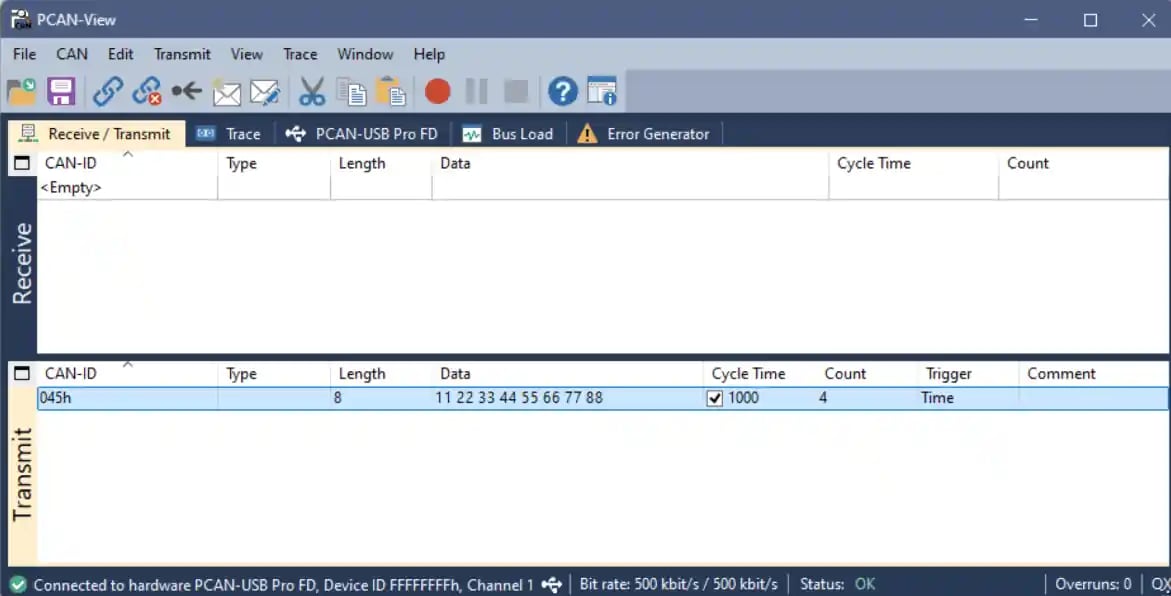

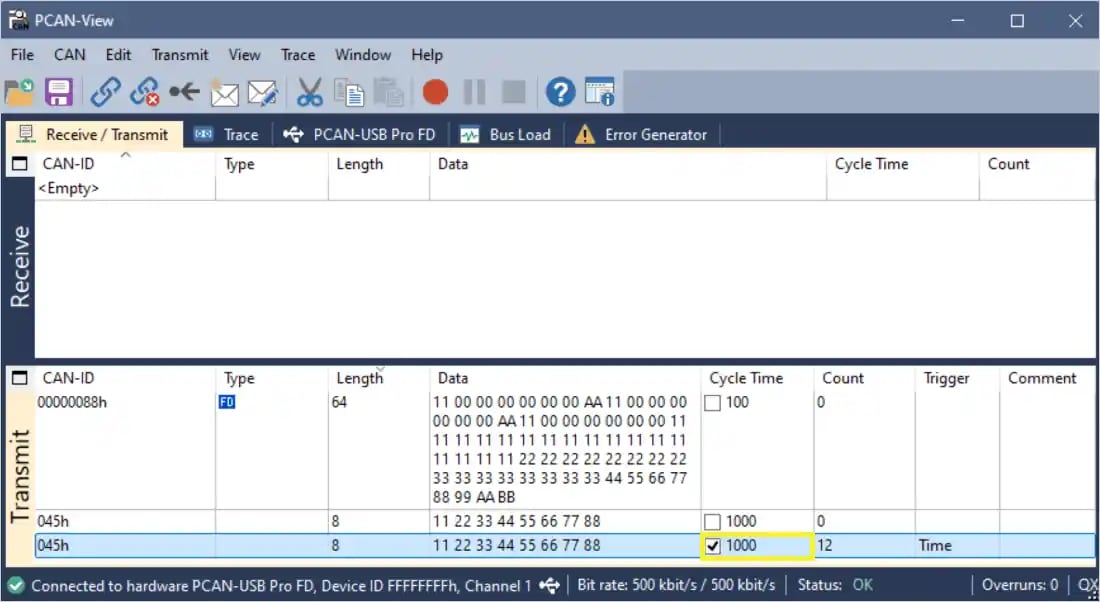

The CAN TX data shows up on the PCAN-View application.

can TX - FD ID Syntax:

can -t 5 -c x

Parameters: x = CAN controller ID: 0 to 7 Sample logs for can -t 5 -c 1

c0[    51.175227s][ UART-CAN ] Queue send for core 1 pass
c1[    51.175285s]vSAILAPPLShelltask_core1: Rx Seq Q SUCCESS -:can -t 5 -c 1
c1[    51.175313s]can_mcal_test : 422 Entered string : can -t 5 -c 1
c1[    51.175344s]Invoked CanTC_Write
c1[    51.276027s]Can_Mb_Sd_CanSrv_Tx_Callback with swPduHandle: 2, Hth: 3,  timeStamp.sec:32 timeStamp.ns:179280000
c1[    51.276072s]CanTest_TxConfirmation with swPduHandle: 2, Hth: 3,  timeStamp.sec:32 timeStamp.ns:179280000
c1[    51.326264s]xCanSrv_Write Successful on object 6 with swPduHandle 2
c1[    51.326298s]Exiting Can Testapp with return : 0

The CAN TX FD data shows up on the PCAN-View application

CAN RX To run the CAN RX command, do the following: a. Select Transmit > New Message ….

b. On the New Transmit Message window, set the following configurations:

ID: Enter the CAN ID (For example, 123).
Length: Set the number of data bytes (8, 12, 32, 64).
Data: Enter the data bytes (For example, 11 22 33 44 55 66 77 88).
cycle time : 1000 ms
under Message Type, ensure to select the CAN FD checkbox if it’s a CAN FD frame.

c. Select ok. d. On the Transmit window, select the cycle time checkbox to start sending the message.

NoteTo stop sending the message, unselect the cycle time.

The following figure shows the transmitted message and received logs:

Sample logs for standard CAN:

Standard packet

c1[    57.414398s]CanTest_RxIndication is invoked with:
c1[    57.414418s]Mailbox-> CanId:0x221
c1[    57.414438s]Mailbox-> Hoh:8
c1[    57.414458s]Mailbox-> ControllerId:1
c1[    57.414479s]timeStamp.sec:38 timeStamp.ns:317740000
c1[    57.414507s]DataLength:8
c1[    57.464911s]Can_Mb_Write : success
c1[    57.464929s]Can_Mb_Write : Controller Id = 1, cmd = 0, len = 8, MsgId : 221

FD packet

c1[    58.725646s]CanTest_RxIndication is invoked with:
c1[    58.725666s]Mailbox-> CanId:0x40000450
c1[    58.725686s]Mailbox-> Hoh:8
c1[    58.725706s]Mailbox-> ControllerId:1
c1[    58.725727s]timeStamp.sec:39 timeStamp.ns:628040000
c1[    58.725755s]DataLength:64
c1[    58.776816s]Can_Mb_Write : success
c1[    58.776834s]Can_Mb_Write : Controller Id = 1, cmd = 0, len = 64, MsgId : 40000450

CAN – HLOS mailbox test commands

The following are the HLOS mailbox CAN test commands:

Enable sail_can user-space application

Run the command to start the sail_can application to use this feature:

sail_can --debug

NoteFor high performance requirements, —debug must be skipped. Use —debug to print the log messages on the console.

Test case output:

[1970-01-03 23:08:39] sail_can INFO  DAEMON: Starting sail_can daemon
[1970-01-03 23:08:39] sail_can INFO  CONFIG: Loading configuration from /etc/sail_can/sail_can.conf
[1970-01-03 23:08:39] sail_can INFO  CONFIG: Controller 0: baud config = 0 (500 kbps nominal, 500 kbps data, BRS disabled)
:::::::::::
[1970-01-03 23:08:39] sail_can INFO  CONFIG: Controller 7: baud config = 0 (500 kbps nominal, 500 kbps data, BRS disabled)
[1970-01-03 23:08:39] sail_can INFO  CONFIG: Configuration loaded for 8 controller(s) with 0 error(s)
[1970-01-03 23:08:39] sail_can INFO  INIT: Initializing daemon components
[1970-01-03 23:08:39] sail_can INFO  GATEWAY: Setting up CAN gateway
:::::::::::
[1970-01-03 23:08:40] sail_can INFO  GATEWAY: CAN gateway setup completed successfully
[1970-01-03 23:08:40] sail_can INFO  INIT: All controllers initialized
[1970-01-03 23:08:40] sail_can INFO  DAEMON: Daemon initialized successfully, entering main loop

View CAN ports

Run the command to see all the CAN ports from APSS:

ifconfig -a
#all vcan node must be seen

Test case output:

vcan0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00inet addr:169.254.185.103 Mask:255.255.0.0vcan1 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00inet addr:169.254.185.103 Mask:255.255.0.0vcan8 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00inet addr:169.254.185.103 Mask:255.255.0.0vcan9 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00inet addr:169.254.185.103 Mask:255.255.0.0wlan0 Link encap:Ethernet HWaddr F6:4F:02:32:74:EA

NoteEdit the active_controller value at /etc/sail_can/sail_can.conf to reflect the actual number of controllers on the device.Start sail_can only after editing and saving the conf file.

Bootup CAN port status

Run the command to update the CAN port status at bootup:

sail_can --debug
# This application will quit if there is any issue in mailbox drivers or SAIL FW.
#  Waiting for message is indication that all CAN ports are booted up right.

NoteEnsure this test sail_can is running in the background.

Set CAN port baud

Run the command to configure the CAN node with bit rate per the CAN bus:

#edit this file on target -- /etc/sail-can/sail-can.conf
# change the baud as per the known set of baud rates only.
killall -HUP sail_can # this will re-start the sail-can application.

Send data

Run the command to send data on CAN bus and receive using a PCAN analyzer on another end:

#data can be sent only on vcan ports
# to send data on CAN port N use vcanN
cansend vcan1 213##311223344 # to send data on CANport 1
cansend vcan7 213##311223344 # to send data on CANport7

Test case output:

# cansend vcan1 213##3112233

VCAN Port Mappings
vcan0  → vcan8
vcan1  → vcan9
vcan2  → vcan10
vcan3  → vcan11
vcan4  → vcan12
vcan5  → vcan13
vcan6  → vcan14
vcan7  → vcan15

Receive data

Run the command to receive data from CANutils (candump) on the can port. Data is sent from PCAN or other external device.

#data can be received only on vcan ports
# to receive data on CAN port N use vcanN
candump vcan7 # to receive data on Vcan 7

Test case output:

 # candump vcan9
 vcan9  213  [04]  11 22 33 44

Error CAN

Send error frame on CAN bus using PCAN analyzer. Use external analysers, such as PCAN, to send error frames.

Send multiple data

To verify CAN communication using one of the following setups:

Send data over multiple CAN buses and receive it using a PCAN analyzer.
Connect two devices through multiple CAN ports and receive data on the corresponding ports.
Connect multiple CAN ports on the same device to a single CAN bus and transmit/receive data across different CAN ports.

Run the following command:

#data can be sent only on vcan ports
# to send data on CAN port N use vcanN
cansend vcan1 213##311223344 # to send data on CANport 1
cansend vcan7 213##311223344 # to send data on CANport7

Test case output:

Send
sh-5.2# cansend vcan1 213##3112233
sh-5.2# cansend vcan2 213##31122334455
sh-5.2# cansend vcan1 213##31122334455
sh-5.2# cansend vcan2 213##31122334455

Receive
sh-5.2# candump vcan9&
[2] 5497
ssh-5.2# candump vcan10&
[3] 5498

sh-5.2#   vcan9  213  [03]  11 22 33
vcan10  213  [05]  11 22 33 44 55
vcan9  213  [05]  11 22 33 44 55
vcan10  213  [05]  11 22 33 44 55

Set baud to multiple CAN port

Run the command to configure the CAN node with bit rate per the CAN bus for more than one CAN port.

#edit this file on target -- /etc/sail-can/sail-can.conf
# change the baud as per the known set of baud rates only.
# can change baud of multiple CAN ports at once.
killall -HUP sail_can # this will re-start the sail-can application

Receive multiple data

Run the command to receive data using SOCKETCAN APIs on more than one CAN port:

#data can be received only on vcan ports
# to receive data on CAN port N use vcanN
candump vcan7 # to receive data on Vcan 7
candump vcan2 # to receive data on Vcan 2

Test case output:

Send
sh-5.2# cansend vcan1 213##3112233
sh-5.2# cansend vcan2 213##31122334455
sh-5.2# cansend vcan1 213##31122334455
sh-5.2# cansend vcan2 213##31122334455

Receive
sh-5.2# candump vcan9&
[2] 5497
ssh-5.2# candump vcan10&
[3] 5498

sh-5.2#   vcan9  213  [03]  11 22 33
vcan10  213  [05]  11 22 33 44 55
vcan9  213  [05]  11 22 33 44 55
vcan10  213  [05]  11 22 33 44 55

Mailbox test applications

Prerequisites

Before running mailbox test applications:

Update SELinux configuration:

Change SELINUX=enforcing to SELINUX=permissive in the /etc/selinux/config file.

Verify the updated configuration:

cat /etc/selinux/config

Sample output:

# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=permissive
# SELINUXTYPE= can take one of these values:
#     minimum - Minimum Security protection.
#     standard - Standard Security protection.
#     mls - Multi Level Security protection.
#     targeted - Targeted processes are protected.
#     mcs - Multi Category Security protection.
SELINUXTYPE=targeted

Reboot the device by running the following command either in the ADB shell or in the UART shell:
reboot

Check mailbox driver status

Run the following command to verify that the mailbox driver is initialized:

dmesg | grep mailbox

Sample output:

root@qcs9075-iq-9075-evk:~# dmesg | grep mailbox
[    0.000000] OF: reserved mem: 0x0000000090c00000..0x0000000090cfffff (1024 KiB) nomap non-reusable tz-sail-mailbox@90c00000
[    4.016720] sail_mailbox 1ffe02c.sail-mailbox: mbox initialization successful !!!!
[    4.089167] sail_mailbox 1ffe02c.sail-mailbox: sail mailbox ready !!!!

Verify device node:
ls /dev/sailMB
Sample output: /dev/sailMB

sail_console_chan_app

Run the following command in the APSS UART shell:

sail_console_chan_app

Sample output:

ret(0x2EC88FF0), time_consumed(1560us)
h0[     0.706105s]nElfLoaderVerifySwiv: SWIV - Image Verification Success for SW Image = 0x55
h0[     0.706137s]Security::Auth::sail_sec_img_auth_hash_elf_segments: Entry, sec_img_id(0x55)
h0[     0.708887s]Security::Auth::sail_sec_img_auth_hash_elf_segments: Exit, sec_img_id(0x55), ret(0x2EC88FF0), time_consumed(2720us)
h0[     0.708956s]xStorageClose: handle = 0x70000

c0[    60.025908s]sail_proc@home$

NoteThe sail_console_chan_app test application emulates (acts like) the RTSS UART console shell.

saildbg

I²C testing

Run the following command in APSS UART shell:

saildbg -r /dev/sail/tst1 -c 0x30 -l 0x3 -p 0xA3 0xF0 0x01

Sample logs:

APSS side:

saildbg: write poll event…
saildbg: dump==>
crc:0x00
::::::
rsv:0x00
d[] dump =>
d[000] | d[001] | d[002] |
0x0A3  | 0x0F0  | 0x001  |
saildbg: read poll event …
saildbg: dump==>
crc:0x00
::::::
rsv:0x00
d[] dump =>  d[000] | d[001] | d[002] | d[003] |
0x0A3  | 0x0F0  | 0x001  | 0x001  |

RTSS side:

c0[   196.506702s] I2C Test Cases Started
c0[   196.536737s] Psail 0–3 Revid: 0x51 0x4f | WRITE: 0x48 | READ: 0x48
c0[   196.706776s] TC_I2C_07: PSAIL Passed
c0[   196.707605s] TC_I2C_08: I2C DeInit Success—Passed
c0[   196.757855s] TC_I2C_09: I2C Init-DeInit with Invalid HWID Passed
c0[   196.809070s] TC_I2C_010: I2C Init Success—Passed
c0[   196.809135s] [I2C tests Passed]

SPI testing

Run the following command in APSS UART shell:

saildbg -r /dev/sail/tst1 -c 0x30 -l 0x3 -p 0xA5 0xF0 0x01

Sample logs:

APSS side:

saildbg: write poll event…
saildbg: dump==>
crc:0x00
:::::::
rsv:0x00
d[] dump =>
d[000] | d[001] | d[002] |
0x0A5  | 0x0F0  | 0x001  |
saildbg: read poll event …
saildbg: dump==>
crc:0xFF
::::::::
rsv:0x00
d[] dump =>
d[000] | d[001] | d[002] |
0x0A5  | 0x0F0  | 0x001  |

RTSS side:

c0[   778.885969s]---> SPI case -:136814492
c1[   778.886080s]vSAILAPPLShelltask_core1: Rx Seq Q SUCCESS -:spi
c1[   778.886108s]Spi_SetupEB : 369 END
c1[   778.886238s][TC_SPI_001]: Test Synchronous transmission in Loopback mode - Passed
c1[   778.886265s][SPI] All Test Cases are Passed

NoteThe failure of TC_I2C_09 is expected, as it is intended to validate negative test scenarios.

mailbox

The mailbox command executes the functional testcases to evaluate the external mailbox performance. Reboot the system after the test is completed.

NoteRun the mailbox command in the RTSS UART console.

mailbox

c0[   123.277065s] sail_proc@home$

c0[   126.620396s] Mailbox Test Cases Started
c0[   126.620535s] slMailBox_DeInit(0): success, status 0
c0[   126.620687s] TC_MB_01 Pass
::::::::
c0[   126.621854s] TC_MB_19–25 Pass
c0[   126.622166s] Mailbox All Test Case Passed!
c0[   126.622211s] Restart the System…!

sailmb_demo

Run the application from the APSS UART shell:

sailmb_demo [OPTIONS]

The application supports the following options:

Option	Description
-s <string>	Specifies the message to send to RTSS. The maximum message size is 64 bytes, including the null terminator. The default message is “Hello From MD!”.
-n <count>	Specifies the number of message exchanges. In single-core mode, the value is the number of exchanges with the selected core. The default value is 1.
-c <core>	Selects RTSS core 0, 1, 2, or 3. The core can also be specified in hexadecimal format, such as 0x3.
-h	Displays command help and exits.

Example scenarios:

Send multiple messages to a core. The following command sends the default message 10 times to Core 1:

sailmb_demo -c 1 -n 10

Sample output:

APSS side:

===== Running Application =====
Selected Core : 1
Input String  : Hello From MD!
Iterations    : 10

1: opened Tx
1: opened Rx
1 Recd: >Hi MD! From SAIL C1 -Hello From MD! (1)-<
::::::
10 Recd: >Hi MD! From SAIL C1 -Hello From MD! (10)-<
1: closed Tx
1: closed Rx
[INFO] Cleanup complete
[INFO] Exit..

RTSS side:

c1[    44.689062s]xCore1Task:Rcvd >Hello From MD! (1)<
c1[    44.892065s]xCore1Task:Rcvd >Hello From MD! (2)<
::::::
c1[    46.514491s]xCore1Task:Rcvd >Hello From MD! (10)<

Send a custom message. The following command sends Ping from Linux 10 times to Core 2:

sailmb_demo -s "Ping from Linux" -n 10 -c 2

Sample output:

APSS side:

===== Running Application =====
Selected Core : 2
Input String  : Ping from Linux
Iterations    : 10

2: opened Tx
2: opened Rx
1 Recd: >Hi MD! From SAIL C2 -Ping from Linux (1)-<
::::::
10 Recd: >Hi MD! From SAIL C2 -Ping from Linux (10)-<
2: closed Tx
2: closed Rx
[INFO] Cleanup complete
[INFO] Exit..

RTSS side:

c2[    54.335216s]xCore2Task:Rcvd >Ping from Linux (1)<
c0[    54.335578s] ====  Core 2 out of sleep ====
c2[    54.355895s][WDT] Watchdog enabled on core 0  cluster-: 1
c2[    54.355956s][WDT] Petting Queuesend success with time-: 55000  core-:2
c2[    54.355989s][WDT] : Core_2 wdt enable performed
c2[    54.538501s]xCore2Task:Rcvd >Ping from Linux (2)<
::::::
c2[    56.158697s]xCore2Task:Rcvd >Ping from Linux (10)<

Specify the core in hexadecimal format. The following command sends Testing Core 3 five times to Core 3:

sailmb_demo -c 0x3 -s "Testing Core 3" -n 5

Sample output:

APSS side:

===== Running Application =====
Selected Core : 3
Input String  : Testing Core 3
Iterations    : 5

3: opened Tx
3: opened Rx
1 Recd: >Hi MD! From SAIL C3 -Testing Core 3 (1)-<
::::::
5 Recd: >Hi MD! From SAIL C3 -Testing Core 3 (5)-<
3: closed Tx
3: closed Rx
[INFO] Cleanup complete
[INFO] Exit..

RTSS side:

c3[    69.235518s]xCore3Task:Rcvd >Testing Core 3 (1)<
c0[    69.235995s] ====  Core 3 out of sleep ====
c3[    69.256181s][WDT] Watchdog enabled on core 1  cluster-: 1
c3[    69.256244s][WDT] Petting Queuesend success with time-: 55000  core-:3
c3[    69.256277s][WDT] : Core_3 wdt enable performed
c3[    69.256464s] [ WDT ] Petting started for core 3
c3[    69.438289s]xCore3Task:Rcvd >Testing Core 3 (2)<
c3[    69.640301s]xCore3Task:Rcvd >Testing Core 3 (3)<
c3[    69.843896s]xCore3Task:Rcvd >Testing Core 3 (4)<
c3[    70.046654s]xCore3Task:Rcvd >Testing Core 3 (5)<

Each received message identifies the responding RTSS core and includes the original message. Use this information to verify that the selected core processed every message.

Ethernet test commands

View the interface configuration

When the device is connected to a public network, the Dynamic Host Configuration Protocol (DHCP) automatically assigns an IP address to the RTSS Ethernet interface. Run the following command to view the assigned IP address, subnet mask, gateway, MAC address, and Ethernet link status:

nw ifconfig

Sample output: [NW] ifconfig: link=UP
[NW] ipv4 192.168.200.20 up=1 dhcp=1
[NW] mask 255.255.255.0
[NW] gw 192.168.200.10
[NW] mac e8:e0:b7:b5:7d:e1
[NW] ipv6 fe80::eae0:b7ff:feb5:7de1 up=1

Set static IPv4 configuration

Run the following command to apply a static IPv4 configuration to the Ethernet device:

nw ifconfig set <ip> <mask> <gw>

Parameters:

<ip>: Static IPv4 address to assign to the RTSS Ethernet interface.
<mask>: Subnet mask for the assigned IPv4 address.
<gw>: Default gateway IP address used to reach devices outside the local subnet.

Example:

nw ifconfig set 192.168.1.100 255.255.255.0 192.168.1.1

Sample output:

[NW] ifconfig set: applied ip=192.168.1.100
[NW]               mask=255.255.255.0
[NW]               gw=192.168.1.1

View network statistics

Use the following command to display network buffer and heap counters:

nw stats

Sample output:

[NW] stats:
[NW]    net buffers: free=30 min=29
[NW]    heap: free=40856 min_ever=32416 bytes
[NW]    ip-queue stats: disabled (ipconfigCHECK_IP_QUEUE_SPACE=0)
[NW]    note: EMAC TX/RX packet counters not exposed by driver

Key metrics:

net buffers: min—if this reaches 0, packet drops may occur.
heap: min_ever—if this approaches 0, memory pressure exists.

Run a ping test

Run the following command to send ICMP echo requests to a remote host and confirm data connectivity:

nw ping <ip> -c <N>

Parameters: <ip>: Link partner IP address <N>: Number of probes. The default value is 4, and the maximum supported value is 32. Example:

nw ping 192.168.200.10 -c 4

Sample output:

[NW] ping 192.168.200.10: 4 probe(s)
[NW]    [1] reply
[NW]    [2] reply
[NW]    [3] reply
[NW]    [4] reply
[NW] ping 192.168.200.10: 4/4 replies

Testing network protocols

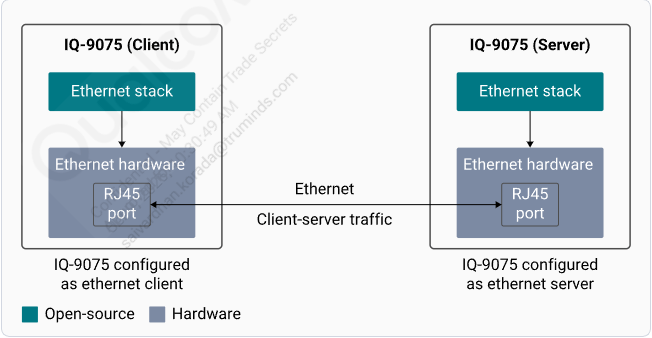

The following figure shows the high-level client/server connection used to validate Ethernet communication between the IQ-9075 target and a connected host. RTSS on the target uses the FreeRTOS TCP/UDP network stack and Ethernet interface to exchange data with the host over a standard Ethernet link. This setup supports TCP client/server testing and UDP packet transmission to verify network connectivity or protocol functionality.

High-level IQ-9075 client/server connection TCP test To perform a TCP test, start the server by running the following command:

nw server start [port]

Example:

nw server start 7777

Run the following command to do the TCP test:

nw tcp connect <ip> <port>

nw tcp send <data>

nw tcp close

Parameters:

<ip>: IP address of the remote TCP server.
<port>: Port number on the remote TCP server.
<data>: Data payload to send over the active TCP connection.

Example:

nw tcp connect 192.168.200.10 7777

nw tcp send hello

nw tcp close

UDP test Run the following command to do the UDP test:

nw udp send <ip> <port> [size]

Parameters:

<ip>: IPv4 address of the remote host.
<port>: Port number on the remote host.
[size]: packet payload size, in bytes.

Example:

sail_proc@home$ nw udp send 192.168.200.10 9999 32

Watchdog test commands

By default, Watchdog is enabled after device bootup. Watchdog enable and disable commands provide feasibility for debugging the software faults. To run the RTSS watchdog commands, do the Prerequisites.

Disable all watchdogs

The wdg disable command disables all four cores simultaneously to stop watchdog petting across the system. For example,

wdg disable

The following sample logs show the watchdog disabled for all cores:

c0[ 7.388680s]use help or exit command….
c0[ 7.388752s]sail_proc@home$
c0[ 10.105693s] [ WDT ] WDT disabled for core 0
c0[ 10.105734s][WDT] : Core_0 wdt disable performed
c1[ 10.105998s] [ WDT ] WDT disabled for core 1
c1[ 10.106022s][WDT] : Core_1 wdt disable performed
c2[ 10.106185s] [ WDT ] WDT disabled for core 2
c2[ 10.106209s][WDT] : Core_2 wdt disable performed
c3[ 10.106273s] [ WDT ] WDT disabled for core 3
c3[ 10.106297s][WDT] : Core_3 wdt disable performed
c0[ 10.106569s][WDT test] disable command send
c0[ 10.106603s]use help or exit command….
c0[ 10.106639s]sail_proc@home$

Note

If all active cores (Core 0, Core 1, Core 2, and Core 3) remain idle for more than 30 seconds, they enter the Sleep state. In the Sleep state, the wdg disable command can’t disable the watchdog on Core 1, Core 2, and Core 3. Additionally, commands executed while the cores are in the Sleep state don’t take effect on Core 1, Core 2, and Core 3.

c0[ 197.375209s] come for WDG disable core [0]
c0[ 197.375253s] [ WDT ] WDT disabled for core 0
c0[ 197.375291s][WDT] : Core_0 wdt disable performed
c0[ 197.375765s][WDT test] disable command send

When user selects Enter on RTSS console, then core 0 will exit the Sleep state and watchdog is enabled as UART interrupts are registered on core 0. External interrupts are required for cores 1, core2, core3 to exit Sleep mode.

c0[ 260.591159s]sail_proc@home$
c0[ 266.639045s][WDT] Watchdog enabled on core 0 cluster-: 0
c0[ 266.639184s] [ WDT ] Petting started for core 0
c0[ 266.639592s][WDT] Petting Queuesend success with time-: 55000 core-:0
c0[ 266.639641s][WDT] : Core_0 wdt enable performed

Enable watchdog

The wdg core<N> enable command enables the watchdog for the specified core. The watchdog starts counting and expects periodic petting.

wdg core<N> enable

Parameter: N is core number. Note For a split-split cluster configuration, the number of cores is 4. For a split-lock configuration, the number of cores is 3. For example,

wdg core0 enable

The following sample logs show the watchdog enabled for core0:

c0[ 199.846578s]use help or exit command….
c0[ 199.846879s]sail_proc@home$
c0[ 203.893654s]enable : Wdg test
c0[ 203.893976s]Wdg Core0 enable : Passed
c0[ 203.894369s]use help or exit command…

Disable watchdog

The wdg core<N> disable commands disables the watchdog for the specified core. The counter stops and no reset will be triggered.

wdg core<N> disable

Parameter: N is core number. For example,

wdg core0 disable

The following sample logs show the watchdog disabled for core0:

c0[ 199.846578s]use help or exit command….
c0[ 199.846879s]sail_proc@home$
c0[ 203.893654s]enable : Wdg test
c0[ 203.893976s]Wdg Core0 disable : Passed
c0[ 203.894369s]use help or exit command…

Trigger watchdog bite

The wdg core<N> triggerbite <time_ms> command forces an immediate watchdog bite on the specified core after the given timeout in milliseconds. This is used to test the bite-triggered reset and recovery sequences.

wdg core<N> triggerbite <time_ms>

Parameters:

N: Core number
time_ms: Timeout value in milliseconds

For example,

wdg core0  triggerbite  50

The following sample logs show the watchdog trigger bite for core 0: c0[ 1930.862604s] Wdg Core0 triggerbite : Passed
c0[ 1930.863200s] BITE trigger recived on core 0

NoteAfter exection of this command, the device enters the Crash state.

Verify window maximum violation

The wdg core<N> winmax command tests the window maximum violation behavior, such as the watchdog is deliberately not petted until after WIN_MAX, verifying that a bark interrupt is correctly generated.

wdg core<N> winmax

Parameter: “N“is core number.

Verify window minimum violation

The wdg core<N> winmin command tests the window minimum violation behavior, such as the watchdog is petted before WIN_MIN, verifying that a window error interrupt is correctly generated.

wdg core<N> winmin

Introduction

Architecture

Key Documents

Technologies

System

Release Notes

​Prerequisites

​Procedure

​help

​gpio

​i2cel1

​spi

​gpttmr_test

​ospinor_el1

​CAN – RTSS test commands

​CAN – HLOS mailbox test commands

​Enable sail_can user-space application

​View CAN ports

​Bootup CAN port status

​Set CAN port baud

​Send data

​Receive data

​Error CAN

​Send multiple data

​Set baud to multiple CAN port

​Receive multiple data

​Mailbox test applications

​Prerequisites

​Check mailbox driver status

​sail_console_chan_app

​saildbg

​mailbox

​sailmb_demo

​Ethernet test commands

​View the interface configuration

​Set static IPv4 configuration

​View network statistics

​Run a ping test

​Testing network protocols

​Watchdog test commands

​Disable all watchdogs

​Enable watchdog

​Disable watchdog

​Trigger watchdog bite

​Verify window maximum violation

​Verify window minimum violation

Prerequisites

Procedure

help

gpio

i2cel1

spi

gpttmr_test

ospinor_el1

CAN – RTSS test commands

CAN – HLOS mailbox test commands

Enable sail_can user-space application

View CAN ports

Bootup CAN port status

Set CAN port baud

Send data

Receive data

Error CAN

Send multiple data

Set baud to multiple CAN port

Receive multiple data

Mailbox test applications

Prerequisites

Check mailbox driver status

sail_console_chan_app

saildbg

mailbox

sailmb_demo

Ethernet test commands

View the interface configuration

Set static IPv4 configuration

View network statistics

Run a ping test

Testing network protocols

Watchdog test commands

Disable all watchdogs

Enable watchdog

Disable watchdog

Trigger watchdog bite

Verify window maximum violation

Verify window minimum violation
